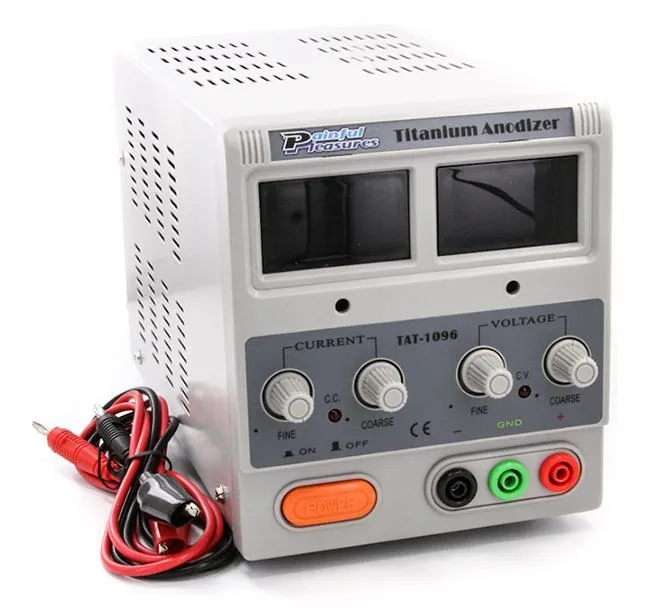

Titanium & Niobium Anodizer for all your Jewelry, Dental & Medical Supplies

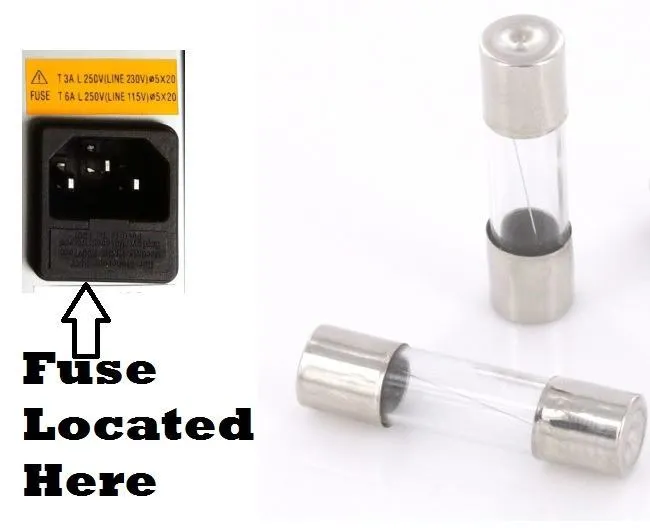

If you have your own setup and already know how to anodize, then purchase this anodizer. If you are new to anodizing, buy the that includes everything you need to start. You are purchasing one Anodizer with everything included in the picture. The Anodizer now comes with extra fuses. If the local voltage is steady, you can choose T4A/250V fuse. If the local voltage is erratic, you can choose T6.3A/250V fuse. This anodizer only needs one fuse.

Please Note: This titanium anodizer is a linear power supply with an industrial frequency transformer to lower the voltage. The anodizer is heavy and generates a large amount of heat during operation. It features a radiator for heat dissipation.

Specifications:

• Full digital voltage and amperage meters; 0 to 120 volts
• Output current: DC 0-1A
• Extremely fine controls for more color options, and more precision
• Used on titanium and niobium metals
• Used for jewelry, medical, and dental supplies
• Switching power supply model ; lightweight with cooling fan

What is Anodizing?

Anodizing titanium is a process that adjusts the oxide level of metal surfaces. This adjustment changes the spectrum of light, resulting in perceived color. By precisely controlling the surface oxide level, an entire range of colors can be produced.

Anodizing titanium is not a coating, nor does it use dyes. Voltage applied to the part through fixturing, in an electrolytic bath, controls the color. Therefore, the integrity and properties of the base metal along with its suitability in biomedical applications are not compromised.

Find out more information about Titanium Anodization by checking out the resources below and the video in the gallery.

Niobium Anodizing Tips

Achieving the Opalescent Color in Niobium:

1. Anodize the niobium to green, which for niobium is generally 95-100v
2. Then turn up the machine to 105-110v and tap it till it reaches the desired color. (The reason nothing is exact is because it all differs with the polish and specific part of the niobium the jewelry was cut from.)

Achieving the Black Color in Niobium:

1. Take your niobium jewelry, after being meticulously hand polished, and use a pair of forceps or ring opening pliers and go from the inside and open so it has the ring snug and not moving.
2. Then take your butane torch and fire the niobium until it becomes red hot in all places at least once, (Note: Firing too much will cause the black coat to flake and peel)
3. Once you've fired the piece let it cool down for 5-8 seconds before dunking it into distilled water (Note: If you dunk it too fast after being red hot it will flake and peel as well.)
4. After it has been fired and cooled down you will end up with matte black.
5. To achieve shiny black we take it to our polishers and polish only with the last step of hand polishing, a quick shine with a white cotton wheel and our orange sunset compound.(Note: Too much hand polishing will start to take off the black color leaving it spotted silver and black.)
