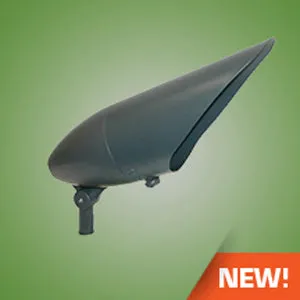

Techlight SPDR40 Large R40 Bullet with Surge Protection Device
Construction
Made with a die cast aluminum housing with stainless steel fasteners. Designed to efficiently operate PAR38 shaped lamps by a socket extension. A high temperature drain plug is provided for uplight applications. A sturdy knuckle mount with locknut is provided for a secure installation. ETL listed for wet locations.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, OD Green, White. Custom colors available upon request.
Optical System
Beam spreads vary based on the light source and lamp shape chosen. Standard shields include an up shield with a convex clear tempered glass lens and an open down shield. Various additional shield and lens assemblies are available for custom applications.
Electrical System
A SPD (Surge Protection Device) is embedded within the base of this bullet and provides additional protection to the luminaire against surges according to ANSI C136.2. 90-305 Vac Input voltage. 15 kA Maximum surge current = 15,000 Amps and 10kA nominal surge current = 10,000 Amps (15 strikes) using industry standard 8/20 μSec wave. Up maximum clamped voltage is 2000V. Operating temperature -40°C to 50°C. High temp, flameproof plastic enclosure; 85°C maximum ambient temperature. Fixture operates at 120V input voltage. Nominal open circuit current .25 to .42 amps. A 30 or 50 watt LED source provides approximately 2353 to 3680 (CW) Lumens of light. System is compatible with the use of a rotary TRIAC Dimmer. Each fixture comes with a medium base porcelain 4KV rated socket.
Mounting
Comes standard with a 1/2" threaded knuckle mount, fully adjustable swivel arm, and locking teeth. The fixture can be mounted directly to the ballast enclosure, or it can be remote mounted using a Techlight mounting accessory.
