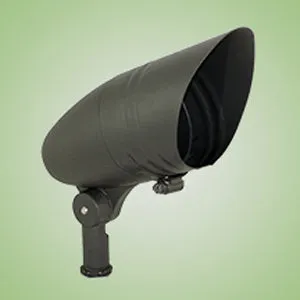

Techlight R2AG Small R20 Aluminum Bullet

Construction

Made with a die cast aluminum housing with stainless steel fasteners. Designed to efficiently operate R20 and PAR20 shaped lamps. A high temperature drain plug is provided for uplight applications. A sturdy knuckle mount with locknut is provided for a secure installation. ETL listed for wet locations.

Finish

A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, OD Green, White. Custom colors available upon request.

Optical System

Beam spreads vary based on the light source and lamp shape chosen. Standard shields include an up shield with a convex clear tempered glass lens and an open down shield. Various additional shield and lens assemblies are available for custom applications.

Electrical System

HID models can be ordered with multi-tap (120V, 208V, 240V, 277V) high power factor or 120V normal power factor ballast enclosures. Incandescent models available for line voltage operation. Each fixture comes with a medium base porcelain 4KV rated socket.

Mounting

Comes standard with a 1/2" threaded knuckle mount, fully adjustable swivel arm, and locking teeth. The fixture can be mounted directly to the ballast enclosure, or it can be remote mounted using a Techlight mounting accessory.
