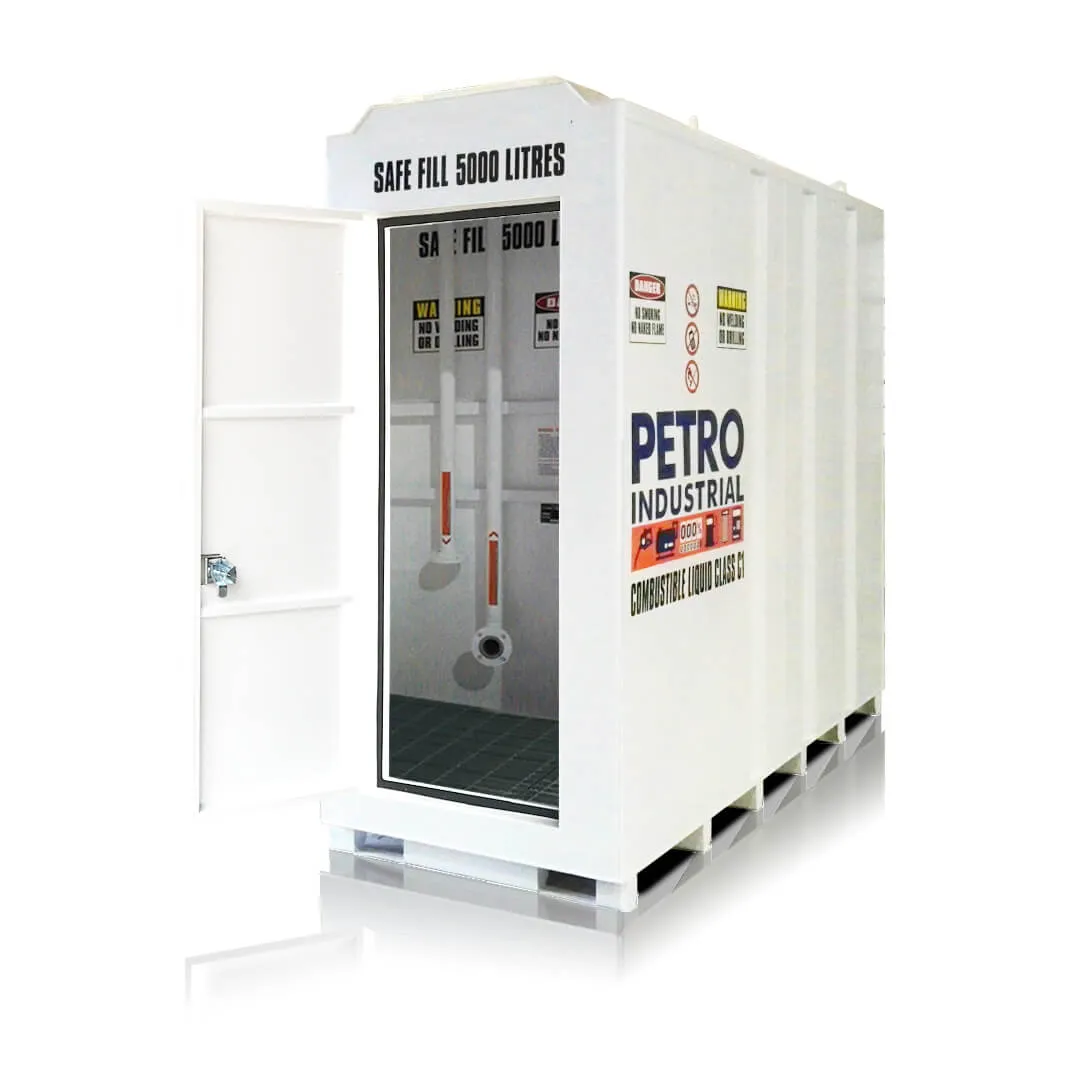

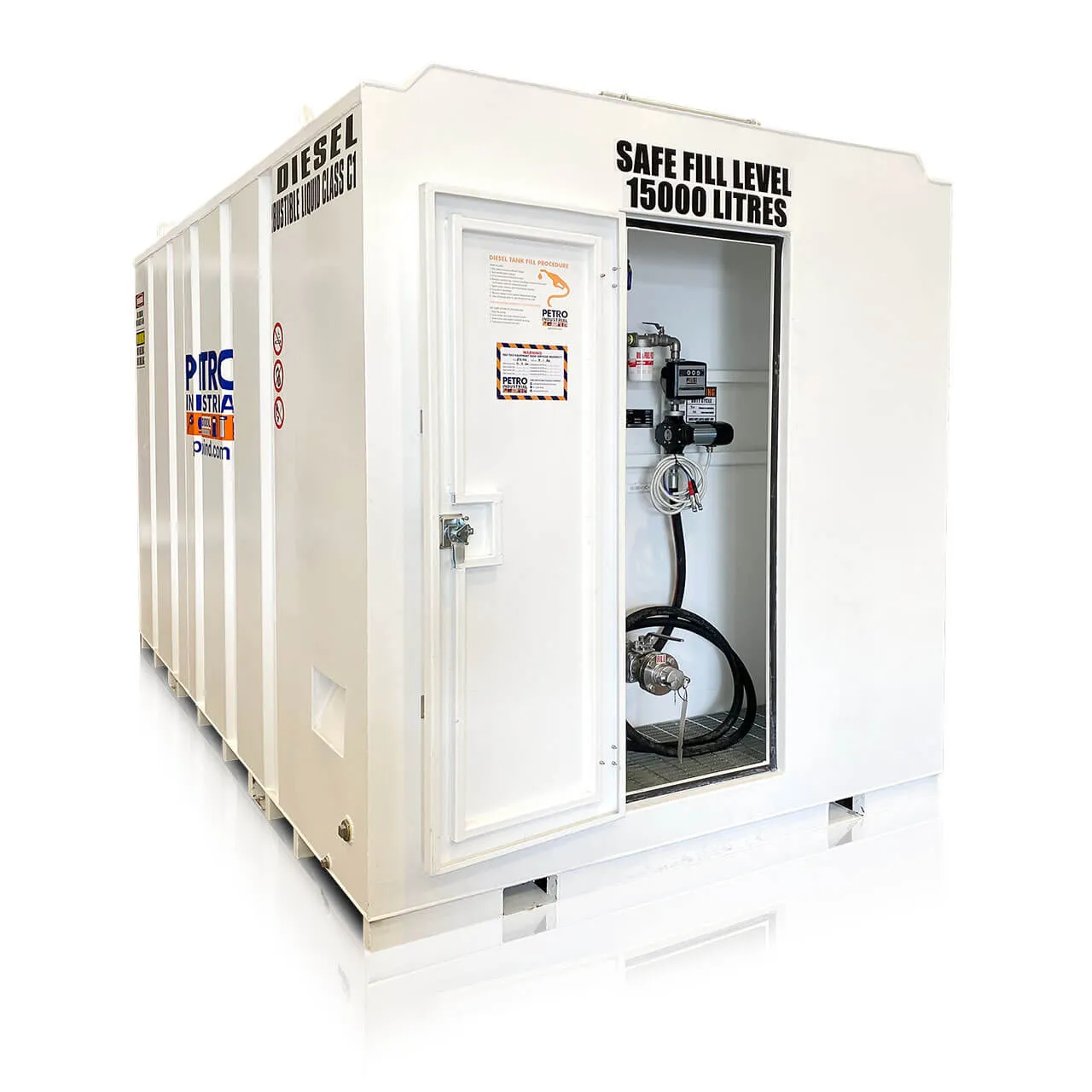

PETRO STORE - Self Bunded (Double Wall) Small Foot Print Tank Range

An innovative small footprint, full height pump bay storage tank perfect for home base refuelling.

FEATURES:

• PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
• COMPLIANCE - Designed and built in accordance with AS1940, AS1692 and AS1657
• BUND - Galvanised grated bunded area with drain
• FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
• SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
• SPARE SUCTION - Spare DN25 (1") Suction Outlet
• SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
• MANWAY - 600mm dia manway with internal ladder
• DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
• INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
• INTERSTITIAL VENT - Interstitial emergency vent
• VENT - Primary tank free air vent
• DECALS - Statutory safety decals
• FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
• LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.
• HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
• PAINT -  Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
