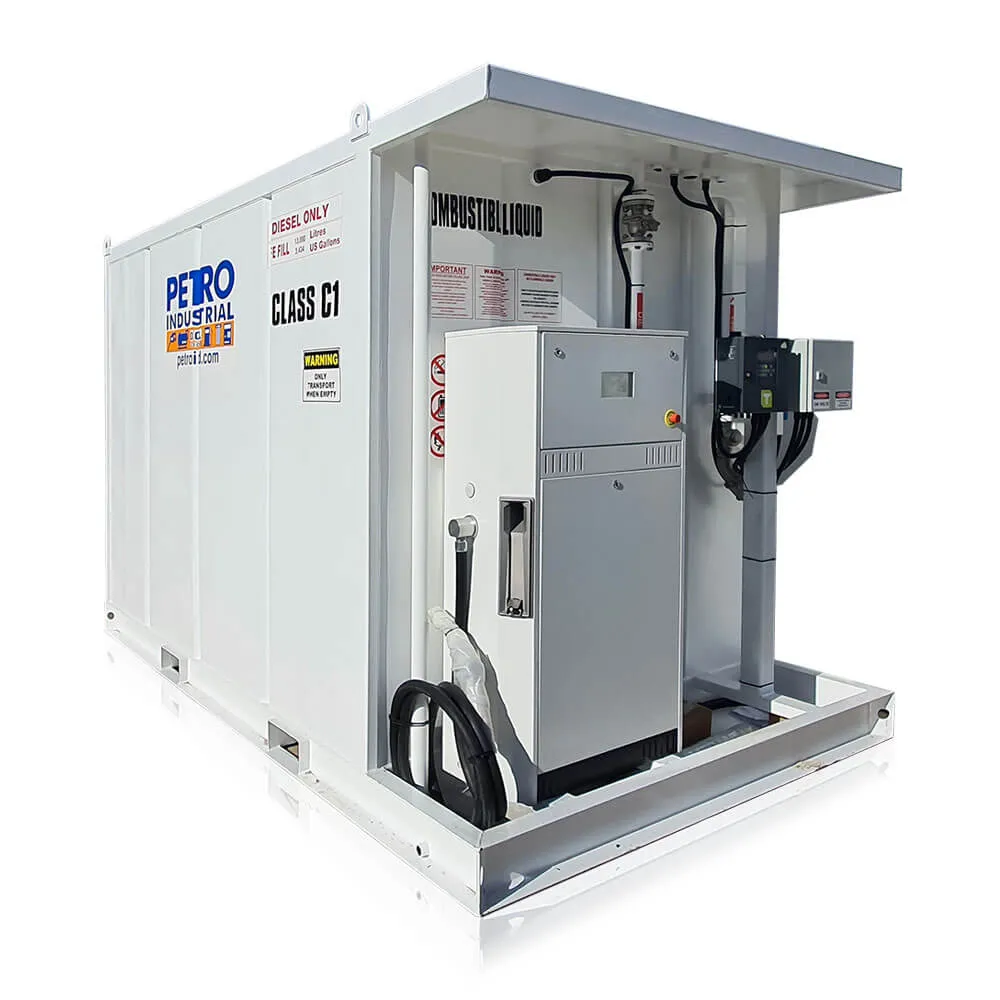

13,000L PETRO STORE (PSO13)- Open Pump Bay - 110% Self-Bunded

The Open Pump Bay small footprint self bunded tank, offers an open pumpbay with easy access to all your pumping and dispensing equipment. The perfect addition to your home base refuelling setup. Approved to AS1940, AS1692.

FEATURES:

PUMP BAY - Unsecured pump bay with 3 open sides.
COMPLIANCE - Designed and built in accordance with AS1940, AS1692.
BUND - A galvanised grated bunded area with drain.
FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non-Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
SPARE SUCTION - Spare DN25 (1") Suction Outlet
SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting instrumentation or other devices
MANWAY - 600mm dia manway with internal ladder
DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dipstick cover fitting
INTERSTITIAL DIP - Anodised aluminium interstitial dipstick with brass lockable dipstick cover fitting
INTERSTITIAL VENT - Interstitial emergency vent added
VENT - Primary tank free air vent
DECALS - Comes with all Statutory safety decals
FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site. The lifting lugs are NOT certified to lift the tank with fuel. Weight capacity of the tank is only for empty lifting.
HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
PAINT - Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
