Predestined for users whose area of ​​responsibility includes not only welding but also other metalworking tasks.

Shade Level 3/9-12

Darkening levels from 9 to 12 cover the majority of welding applications and with a protection level 3 in its general mode, the welder has a bright and well-lit view of the workplace.

This feature makes the Optrel Weldcap ideal for grinding jobs as well.

Suitable For:

Electrode Welding (Stick Welding, SMAW)

MIG/MAG (GMAW)

TIG Welding (GTAW)

Spot Welding

Weldcap

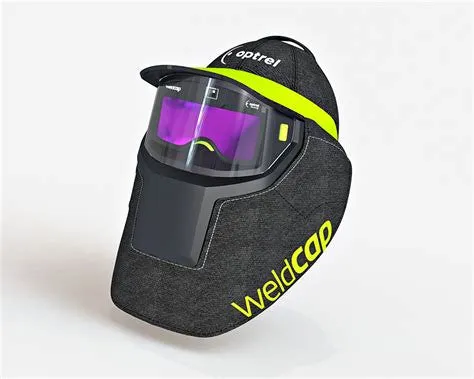

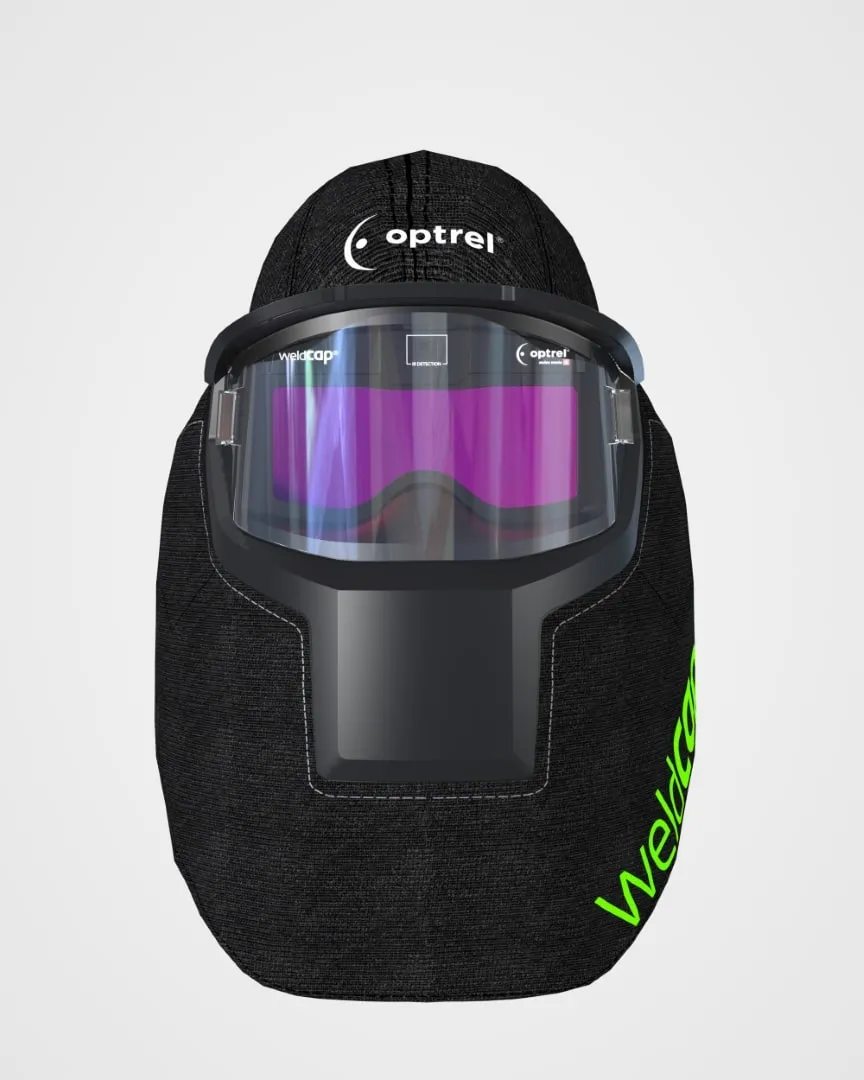

The new Optrel Weldcap combines the lightweight wear comfort of a baseball cap with the full protection of an auto darkening welding helmet.

The Optrel Weldcap weighs only 390 grams, so it is an absolutely lightweight. It relieves the welder of about 200 kg load capacity over a year, when compared to conventional welding helmets.

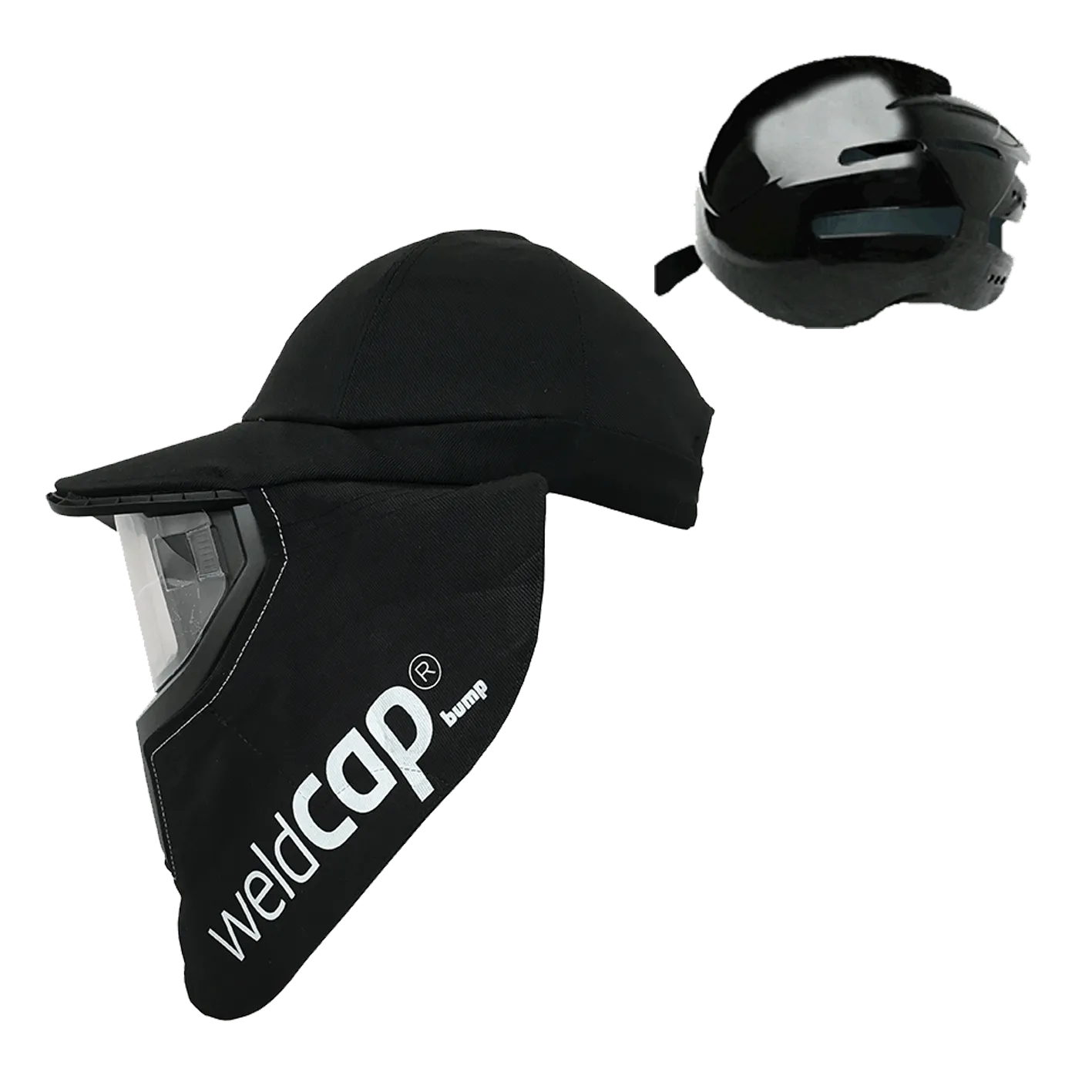

Weldcap Bump

While normal auto-darkening hoods protect only part of the head, the Weldcap bump now completely protects the crown of the head against painful strikes. The bump cap also provides additional stability and a feeling of safety like a full-face helmet, without getting noticeably heavier.

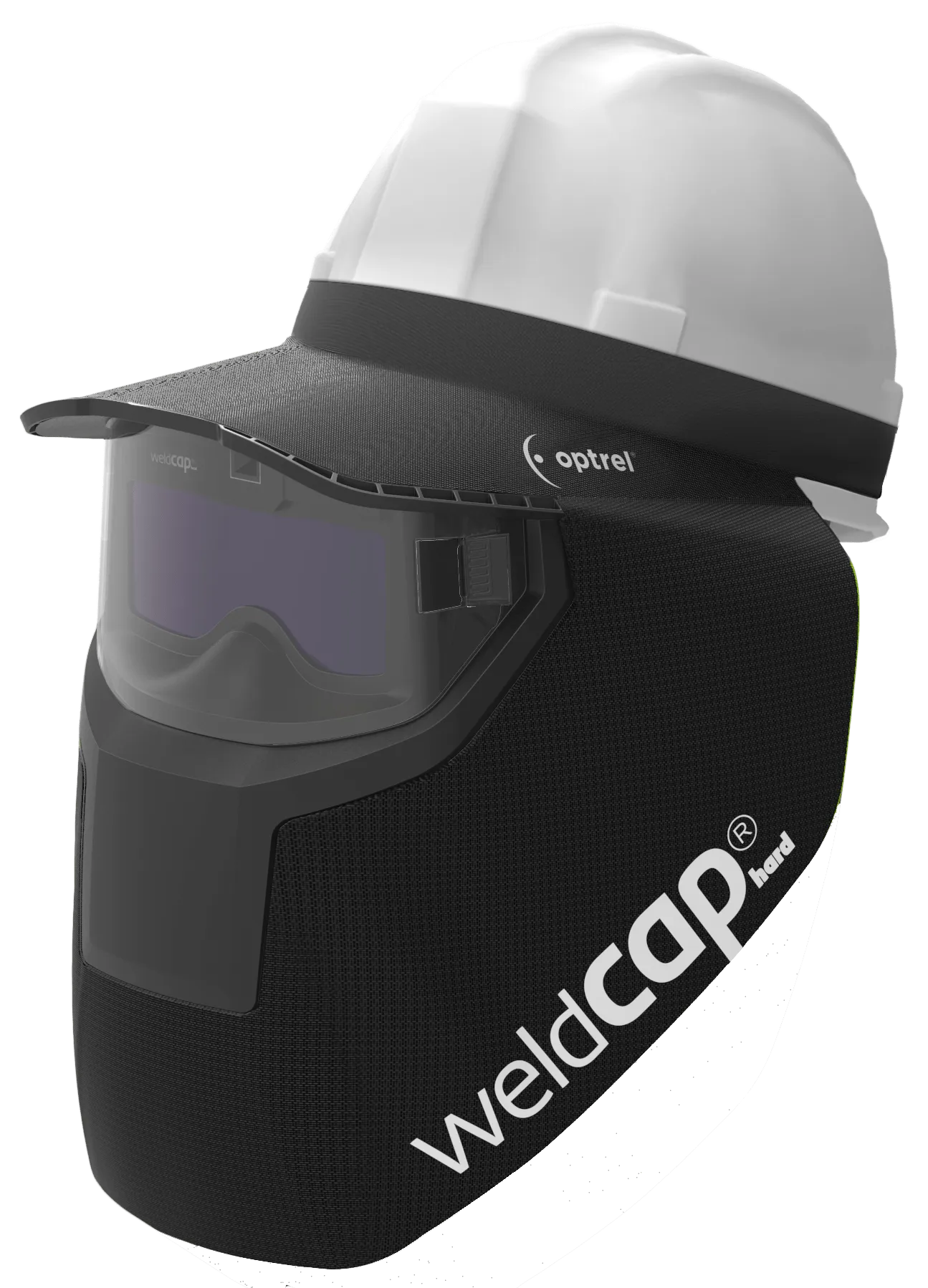

Weldcap Hard

Compatible with standard hard hats, the weldcap hard attaches with minimal effort to your industrial helmet. The cap ’s design accommodates the use of ear muffs.

Let the show begin

The heart of this innovative product is the optical unit featuring a well-defined nose cut out. Thereby the visual unit is placed closer to the eyes compared to traditional welding helmets, which helps to increase the welder’s line of sight by 2.7 times! Moreover, because of this, the weight shifts closer to the centre of gravity so that the Weldcap is excellently counterbalanced and the load on the back of the welder’s neck is significantly reduced.

The Optrel Weldcap is also completely hygienic. The textile part is robust and easily detachable, and is made of easily-washable, flame retarded fabric.

Standards: CE (EN 379, EN 166, EN 175), complies with CSA Z94 ANSI Z87.1, AS/NZS 1337.1/1338.1

Shade Levels	Inactive: Shade Level 3 Active: Shade Level 9 - 12
Power Supply	2 pcs batteries 3V exchangeable (CR2032)
Sensors	Wide angle detection sensor
Switching Time	Bright to dark: 0.16 ms at room temperature / 0.11 ms at 55°C Dark to bright: 0.05 s to 1.0 s
EN379 classification	Optical: Class 1 Scattered Light: 1 Homogeneity: 2 Angular Dependence: 2
Shape Stability	Welding mask: up to 180 °C Front cover lens: up to 135 °C
Operating Temperature	-10°C to 70°C
Storage temperature	-20°C to 70°C
Weight	400gm
